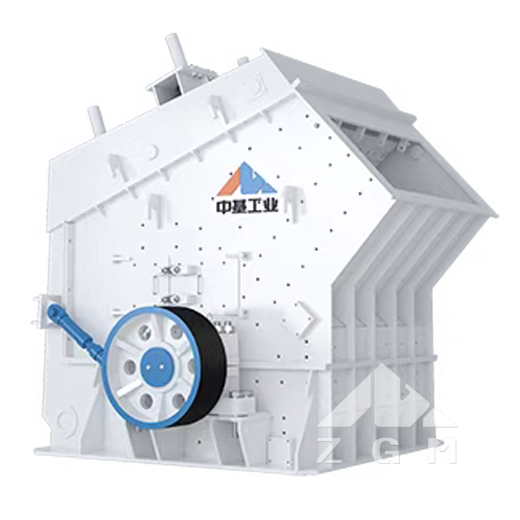

The design of impact crusher adopts novel design principle, new concepts of crushing technology. Impact crusher not only has a great crushing ratio and fine products of uniform shape, can process coarse, medium and fine type materials (granite, limestone, concrete etc.) can be selected two or three cavity version according to the finished product size.

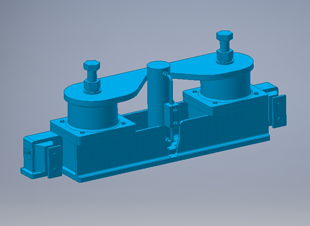

The independently suspended impact aprons form a multi-stage impact crushing chamber, effectively increasing the crushing ratio and reducing energy losses caused by unproductive material rebound for more thorough crushing.

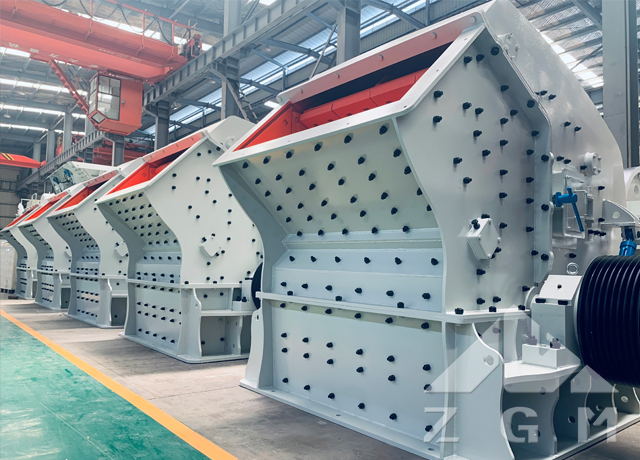

From steel plate cutting, bending, planing, milling to painting, all is digital control, core components accurate to higher standards.

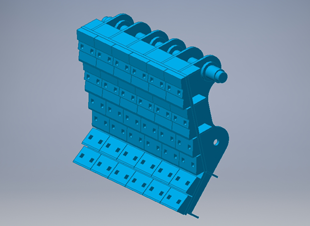

The hammer adopts high wear resistant material, service life is longer, and material after strict heat treatment, has good mechanical impact resistance.

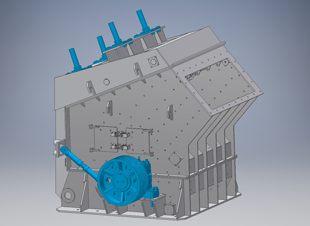

The equipment can be automatically discharged and reset to avoid the risk of equipment overload and the loss caused by downtime maintenance.
Model | Specification | Feeding size(mm) | Max. Feeding size (mm) | Capacity (t/h) | Model of motor | Power(kw) |
PF-1010 | φ1000x1050 | 400x1080 | ≤300 | 50-90 | Y315S-6 | 75 |
PF-1210 | φ1250x1050 | 400x1080 | ≤300 | 70-130 | Y315L1-6 | 110 |
PF-1214 | φ1250x1400 | 400x1430 | ≤300 | 90-180 | Y315L2-6 | 132 |
PF-1315 | φ1300x1500 | 680x1520 | ≤350 | 120-250 | Y2-355M2-6 | 200 |
PF-1320 | φ1300x2000 | 680x1570 | ≤500 | 160-350 | Y2-355M2-6 | 280 |
PFV-1010 | φ1000x1050 | 400x1030 | ≤200 | 35-60 | Y315S-6 | 75 |
PFV-1210 | φ1250x1050 | 570x1030 | ≤250 | 70-140 | Y315L1-6 | 110 |
PFV-1214 | φ1250x1400 | 570x1430 | ≤250 | 90-190 | Y315L2-6 | 160 |
PFV-1315 | φ1300x1500 | 625x1530 | ≤300 | 150-280 | Y2-355M2-6 | 200 |
