P6S series of high-strength hydraulic impact crusher has strong advantages in the fields of crushing ratio, safety, operation, unit energy consumption and so on.
Limestone
Basalt
Granite
Pebbles
Construction
Power
Dry Mix
Chemica
Building
Mining
P6S series of high-strength hydraulic impact crusher is the embodiment of international advanced technology, which has strong advantages in the fields of crushing ratio, safety, operation, unit energy consumption and so on. By adjusting the special device, it can be freely converted between the first and second crushing and widely used in the stone crushing plant.

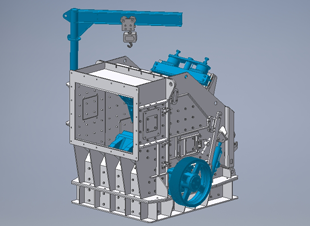

By adopting the three combination design of open box, hydraulic hoisting device and maintenance hoisting, make hammer and parts replacement in short time.

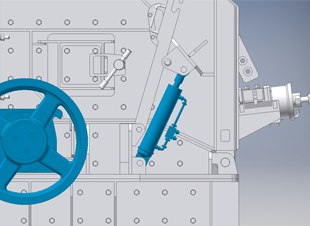

Hydraulic automatically adjust the gap between the Impact rack and the plate hammer, effectively reducing labor intensity, fast, convenient and safer operation.

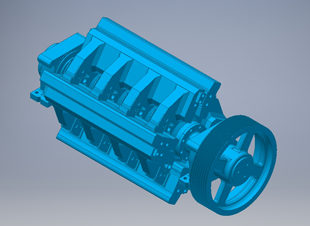

The heavy-duty rotor features high rotational inertia and delivers powerful impact crushing, providing excellent performance in breaking large feed material and increasing overall throughput.

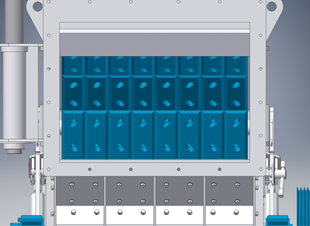

Cast from a highly wear-resistant alloy, the impact plates offer excellent resistance to impact and abrasion. Easy gap adjustment allows flexible control of product size and ensures consistent particle shape.
Model | Output size(mm) | Max. Feeding size(mm) | Capacity(t/h) | Power(kw) | Overall Dimension(LxWxH)(mm) |
P6S150 | 20-100 | 600 | 100-200 | 90-110 | 2800x1925x2305 |
P6S200 | 20-100 | 900 | 140-285 | 110-160 | 2871x1967x2600 |
P6S280 | 20-100 | 900 | 200-400 | 160-200 | 2871x2307x2600 |
P6S380 | 20-200 | 950 | 250-500 | 200-315 | 3175x2781x2800 |
P6S480 | 20-200 | 1000 | 400-600 | 315-375 | 3582x3205x3118 |
P6S680 | 20-200 | 1200 | 550-700 | 400-500 | 4056x3395x3356 |
