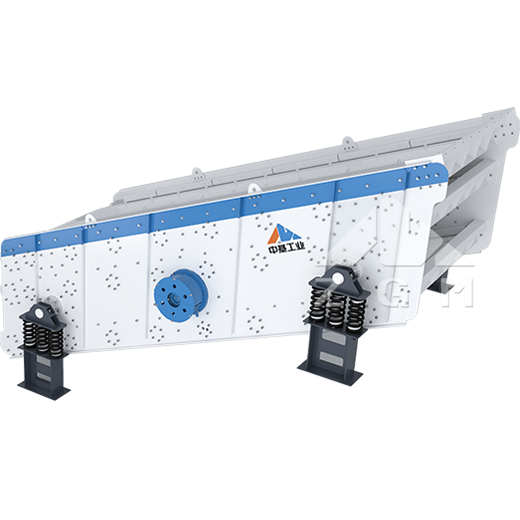

Y6S series vibrating screen suitable for all kinds of screening works in heavy, medium and fine screening.
Limestone
Basalt
Granite
Pebbles
Construction
Power
Dry Mix
Chemica
Building
Mining
Y6S series vibrating screen suitable for all kinds of screening works in heavy, medium and fine screening. The vibrating screen has high vibration intensity and higher processing capacity and screening efficiency than traditional equipment under the same specifications. It is an ideal equipment for dealing with primary crushing and secondary crushing materials, and can also be used to screen finished materials.
Integrated structure, strong vibration force, low vibration noise, easy to repair, durable.
The module design of vibration exciter aligning devices and cabinet can convenient replacement.
Drivers are added to improve motor transmission efficiency and prolong service life of V-belt, thus prolongs the service life of bearing.
Optional with thin lubrication, which assures the bearing’s lubrication is at its best.
Model | Layer of Screen | Size of Sieve Pore (mm) | Max, Feeding Size (mm) | Capacity (t) | Motor Power (kw) | Amplitude | Sieve Specification |
Y6S2165-2 | 2 | 3-100 | 300 | 85-750 | 30 | 6-11 | 2100x6000 |
Y6S2165-3 | 3 | 3-100 | 300 | 85-750 | 30 | 6-11 | |
Y6S2165-4 | 4 | 3-100 | 300 | 85-750 | 37 | 6-11 | |
Y6S2465-2 | 2 | 3-120 | 300 | 90-850 | 37 | 6-11 | 2400x6000 |
Y6S2465-3 | 3 | 3-120 | 300 | 90-850 | 37 | 6-11 | |
Y6S2870-2 | 2 | 3-120 | 300 | 110-1000 | 37 | 6-11 | 2800x7000 |
Y6S2870-3 | 3 | 3-120 | 300 | 110-1000 | 37 | 6-11 | |
Y6S3073-2 | 2 | 3-120 | 300 | 150-1300 | 45 | 6-11 | 3000x7300 |
Y6S3073-3 | 3 | 3-120 | 300 | 150-1300 | 45 | 6-11 |
