ZY-2 Shaping & sands making mobile crushing station has settled the problem of combining traditional mobile station with artificial sand making machine, which is the ideal equipment of sand maker and shaping.
Limestone
Basalt
Granite
Pebbles
Construction
Power
Dry Mix
Chemica
Building
Mining

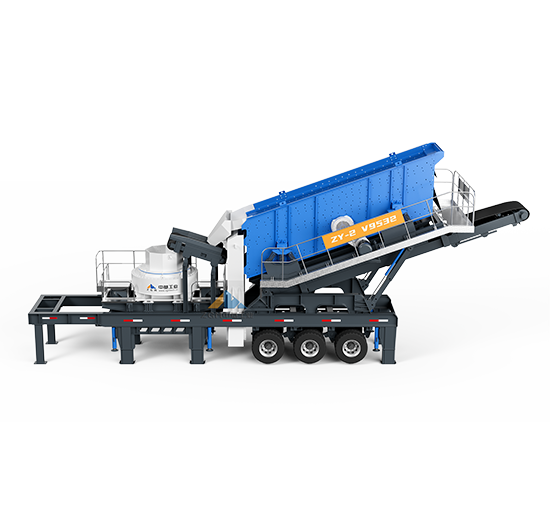

ZY-2 Shaping & sands making mobile crushing station has settled the problem of combining traditional mobile station with artificial sand making machine, which is the ideal equipment of sand maker and shaping. Fineness product with reasonable gradation,cube, uniform grain, suitable for high standard sand for concrete. This kind of integration mobile station combined by V6S vertical shaft impact crusher, vibrating screen,belt conveyor, motor and electric control box.
The main equipment adopts V6S series vertical shaft impact crusher, with high efficiency in sand making, excellent grain shape, which is the ideal equipment of sand maker and shaping.
The hydraulic and mechanical support provided in the screening system can ensure the stability of the equipment during operation, hydraulic lifting can flexible switch the work and transport mode.
Integrated crushing and screening, convenient and simple, which can operate directly, removing the infrastructure installation and working hours consumption.
The high quality and thickened steel frame structure be adopted by our company for mobile crushing station, which can protect the crushing station running smoothly, and prolong the service life.
Model | Crusher Model | Screen Model | Conveyor Under Screen | Main Conveyor | Frame | Capacity (t/h) |
Transport Size | Hydraulic System |
ZY-2 V85 | V6S8522 | 3YS1848/ | B1200x8.7M | B1000x7.5M | Triaxial | 120-190 | 14900x3000x3900 | Hydraulic take-off and landing |
ZY-2 V95 | V6S9532 | 3YS1860/ | B1200x8.7M | B1000x7.5M | Triaxial | 180-280 | 15600x3100x4000 | Hydraulic take-off and landing |
ZY-2 V10 | V6S1040 | 3YS1860/ | B1200x8.7M | B1000x7.5M | Triaxial | 230-340 | 15900x3300x4000 | Hydraulic take-off and landing |
