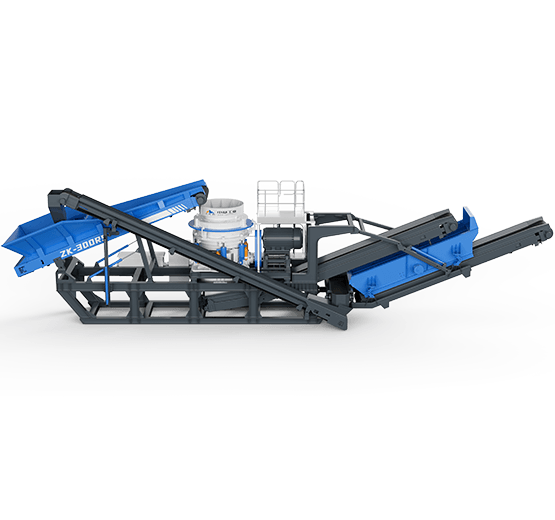

ZK-HP/DG series module type cone crushing mobile station integrates the cone crusher and belt conveyor in one steel frame which has superior crushing ability.Focusing on its convenience and flexibility to realize fast installation.
Limestone
Basalt
Granite
Pebbles
Construction
Power
Dry Mix
Chemica
Building
Mining

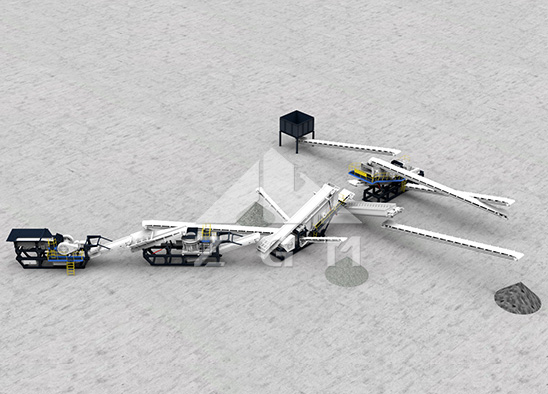

ZK-HP/DG series module type cone crushing mobile station integrates the cone crusher and belt conveyor in one steel frame which has superior crushing ability.Focusing on its convenience and flexibility is to realize fast installation.The steel structure of the crushing station is provided in modular form, variety of process configuration schemes,integrates the feeder, crushers and conveyor system which can be used singly or multi-combined ,to form different crushing and screening systems according to demand.
Variety of process configuration schemes, can be used singly or multi-combined ,to form different crushing and screening systems according to demand.
The design of module type cone crushing mobile station focus on the convenience and flexibility.The steel frame in modular form can realize fast installation.
The compact modular structure design effectively reduces the site area and enables more accurate and smooth equipment connection.
The whole frame structure uses the buffering and damping device,which make the whole machine stable during the operation of the machine.
| Model | Main machine model | Main belt conveyor | Feeding capacity(t/h) | Max. feeding size(mm) | Capacity(t/h) | Discharge opening adjustment range (mm) | Main machine power(kw) | Whole machine power(kw) | Transportation dimension(L×W×H) (mm) |
| ZK-HP300S | HPS300 | B1000*9米 | 500 | 180 | 100-380 | 10-45 | 220 | 350 | 18000*3500*4700 |
| ZK-DG300S | DG300 | B1000*9米 | 500 | 215 | 100-380 | 10-45 | 220 | 350 | 18000*3500*5300 |
| ZK-DG200S | DG200 | B1000*9米 | 500 | 185 | 100-380 | 10-45 | 160 | 290 | 18000*3500*4350 |
